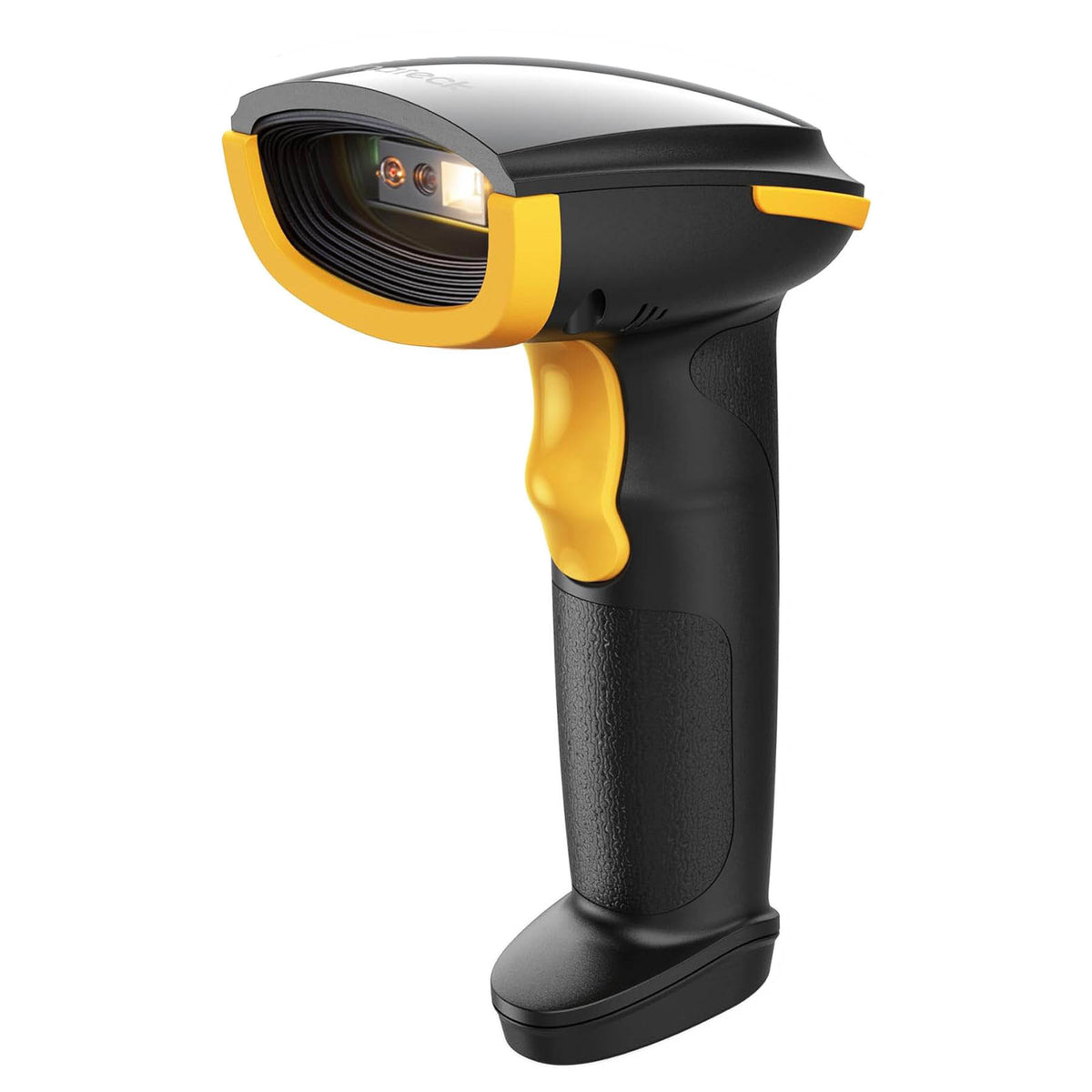

Inateck Barcode Scanner CMOS 1D/2D Wireless 2.4GHz/Bluetooth USB-A 2600mAh BCST-23 Black

The Inateck BCST-23 is a highly versatile, hyper-efficient 2D wireless handheld barcode scanner belonging to Inateck's flagship Hyper Series. Engineered to optimize daily tasks in retail settings, boutique storefronts, busy warehouses, and logistical sorting offices, the BCST-23 is powered by an advanced 300,000-pixel CMOS image sensor. This module enables operators to capture modern 2D graphics (like QR codes and Data Matrix) alongside traditional 1D barcodes directly from highly reflective smartphone/tablet screens or standard printed labels. With low-consumption battery algorithms providing up to 3 months of runtime on a single charge and effortless triple-mode flexibility, it serves as an ideal plug-and-play solution for retail POS lanes, mobile ticketing check-ins, inventory tracking, and custom B2B ERP system integrations via the proprietary Inateck App and SDK.

• High-Capacity Power Optimization: Utilizing Inateck's advanced low-consumption algorithms, the 2600mAh battery delivers up to 3 months of standard operation or 1 month of high-frequency continuous use on a single charge.
• Superb 2D Area Imager Module: Features a professional 640 × 480 CMOS digital matrix engine capable of instantly capturing blurred, crumpled, scratched, or low-contrast barcodes under both intense sunlight and dim warehouse lighting.
• Seamless Triple-Mode Adaptation: Provides instant wireless agility via 2.4GHz connection (using the included USB adapter), low-latency Bluetooth (HID/SPP modes for mobile tablets), or driverless plug-and-play wired USB.
• On-Demand App & Enterprise SDK Control: Fully compatible with the digital Inateck App for code-free hardware configuration, and backed by a comprehensive multi-language developer SDK to seamlessly bind device data with existing corporate ERP platforms.
• Intelligent Inventory Cache: Includes a dedicated offline Inventory Mode that safely buffers scanned barcodes into the on-board flash memory, allowing stockroom workers to conduct independent batch data uploads without being constrained by real-time wireless range.

• Model: BCST-23
• Color: Black (with yellow design accents)
• Material: PC + ABS + TPU (Impact-resistant protective rubber)
• Dimensions: 90.9 mm × 68.3 mm × 165.1 mm
• Weight: 205 g
• Processor: 32-bit CPU
• Light Source / Sensor: Red LED targeting line / 640 × 480 CMOS Area Imager
• Scanning Speed: 100 scans per second
• Scan Mode: Image-Scan
• Scanning Method: Manual Trigger / Automatic Continuous Scan / Hands-Free Auto-Sensing Mode
• Minimum Resolution: 4 mil
• Scan Depth of Field: 4 cm to 30 cm
• Scan Width: 300 mm @ 400 mm
• Barcode Angle Limits: Rotation angle 360°, elevation angle ±65°, declination angle ±65°
• Minimum Barcode Contrast: 20%
• Transmission Modes: 2.4GHz Wireless Adapter, Bluetooth (HID/SPP), Wired USB Type-A
• Wireless Transmission Range: Up to 100 m (unobstructed line-of-sight in 2.4GHz mode)
• Supported 1D Barcodes: Code 128, EAN-13, EAN-8, UPC-A, UPC-E, Code 39, Code 93, Codabar, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, ISBN, ISSN, GS1 DataBar (RSS), Code 11, MSI Plessey, China Postal Code, UCC/EAN-128, FedEx, USPS
• Supported 2D Barcodes: QR Code, Data Matrix, PDF417, Aztec Code, MaxiCode, GS1-Composite
• Compatible Operating Systems: Windows XP / 7 / 8 / 10 / 11, macOS, Android, iOS, iPadOS, Linux
• Software Integration: Supports Inateck Scanner App and professional multi-language developer SDKs
• Notification Methods: High-efficiency adjustable Buzzer, LED status lights, Vibration
• Battery Capacity: 2600mAh rechargeable lithium-ion battery
• Supply Voltage: DC 5V via USB interface
• Operating / Storage Temperature: 0°C to 50°C
• Drop Resistance: Rated to withstand repeated drops up to 1.2 m onto concrete surfaces
