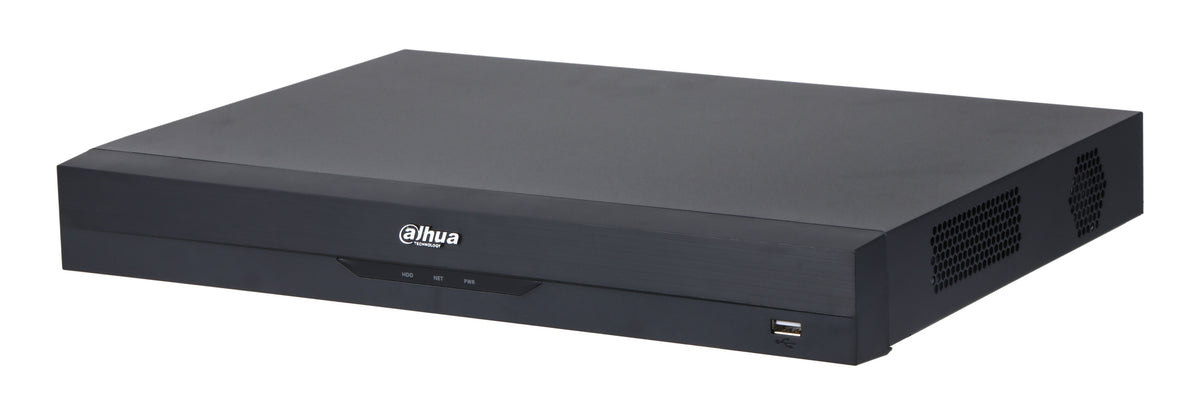

Dahua XVR 1080P 32channels H.265 Penta-brid 2HDD WizSense XVR5232AN-I3/T (Supports AI)

• 32-channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder
• 2-channel AcuPick for analog channels which improves the efficiency of target retrieval
• 8-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI
• 2-channel face recognition for analog channels which supports face comparison
• 32-channel SMD Plus for analog channels or 48-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles
• 16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos
• Supports HDCVI, AHD, TVI, CVBS and IP video input
• Supports up to 48-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 192 Mbps
• Supports accessing Wi-Fi cameras, making it suitable for a wide range of scenes
• Smart H.265+ and H.265 dual-stream video compression

*Dolynk cloud version: DMSS 2.0.30 and above, Dolynk Care 2.50.20 and above

System

• Main Processor : Industrial-grade processor
• Operating System : Embedded Linux
• Operating Interface : Web; Local GUI

AcuPick

• AcuPick Performance of AI by Recorder (1080P) (Number of Channels) : 2 channels

Perimeter Protection

• Perimeter Performance AI by Recorder (Number of Channels) : Advanced Model: 8 channels, 10 IVS for each channel

Face Detection

• Face Attributes : 6 attributes
• Face Detection Performance of AI by Recorder (Number of Channels) : 2 channels (up to 12 face images/s)

Face Recognition

• Face Database Capacity : Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture
• Face Recognition Performance of AI by Recorder (Number of Channels) : 2 channels

SMD Plus

• SMD Plus by Recorder : 32 channels : Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change

AI Video Quality Analytics

• AI Video Quality Analytics by Recorder : 32 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white

Scene Changing

• Scene Changing by Recorder : 1 channel

Irregular Black Block Masking

• Irregular Black Block Masking by Recorder : 1 channel

Audio and Video

• Analog Camera Input : 32 BNC ports, CVI access by default, supports HDCVI/AHD/TVI/CVBS auto-detect
• Camera Input : CVI: 5MP, 4 MP, 1080P@25/30 fps; 720P@50/60 fps; 720P@25/30 fps / TVI: 5MP, 4MP, 3MP, 1080P@25/30 fps; 720P @25/30 fps / AHD: 5MP, 4MP, 3MP, 1080P@25/30 fps, 720P @25/30 fps
• IP Camera Input : Up to 32 channels of IPC access : 32 channels (analog channels are converted to IP channels) : incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps
• Encoding Capacity : Main stream: All channels 5M-N@(1fps–10fps); 4M-N/1080P@(1fps–15fps); 1080N; 720P; 960H; D1; CIF@(1fps–25/30fps) / Sub stream: D1/CIF@(1fps–25/30fps)
• Dual-stream : Yes
• Video Frame Rate : PAL: 1 fps–25 fps. / NTSC: 1 fps–30 fps
• Video Bit Rate : 32 kbps–6144 kbps per channel
• Audio Sampling : 8 kHz, 16 bit
• Audio Bit Rate : 64 kbps
• Video Output : 1 HDMI, 1 VGA, 1 TV / HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 / VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 / Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable
• Multi-screen Display : 1/4/8/9/16/25/36
• Third-party Camera Access : Onvif, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung

Compression Standard

• Video Compression : AI Coding; H.265+; H.265; H.264+;H.264
• Audio Compression : G.711A; G.711u; PCM

Network

• Network Protocol : HTTP; HTTPS; TCP / IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
• Mobile Phone Access : iOS, Android
• Interoperability : ONVIF 21.06, CGI
• Browser : Chrome, IE9 or later, Firefox
• Network Mode : Single-address mode

Recording Playback

• Record Mode : General, motion detection; intelligent; alarm; POS
• Recording Playback : 1/4/9/16
• Backup Method : USB device and network
• Playback Mode : Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)

Storage

• Disk Group : Yes

Alarm

• General Alarm : Motion detection, video loss, tampering
• Anomaly Alarm : No disk, storage error, low space, offline, IP conflict, MAC conflict
• Intelligent Alarm : Face detection, face recognition, perimeter protection
• Alarm Linkage : Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email

Ports

• TV Output : 1 channel
• Audio Input : 1-channel RCA (external) / 32-channel BNC (coaxial audio)
• Audio Output : 1-channel RCA
• Two-way Talk : Yes (share the same audio input with the first channel)
• HDD Interface : 2 SATA ports, up to 16 TB, the maximum HDD capacity varies with environment temperature
• RS-485 : 1
• USB : 2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
• HDMI : 1
• VGA : 1
• Network Port : 1 (10/100/1000 Mbps Ethernet port, RJ-45)

General

• Power Supply : 12 VDC, 5 A
• Power Consumption : 16 W (without HDD)
• Net Weight : 1.9 kg
• Gross Weight : 3.24 kg
• Product Dimensions :  375.0 mm × 289.6 mm × 53.0 mm
• Packaging Dimensions : 427.0 mm × 137.0 mm × 356.0 mm
• Operating Temperature : –10 °C to +55 °C (+14 °F to +131 °F)
• Operating Humidity : 0%–90% (RH)
• Installation : Desktop

Certifications

• CE-LVD: IEC 62368-1:2014.CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
