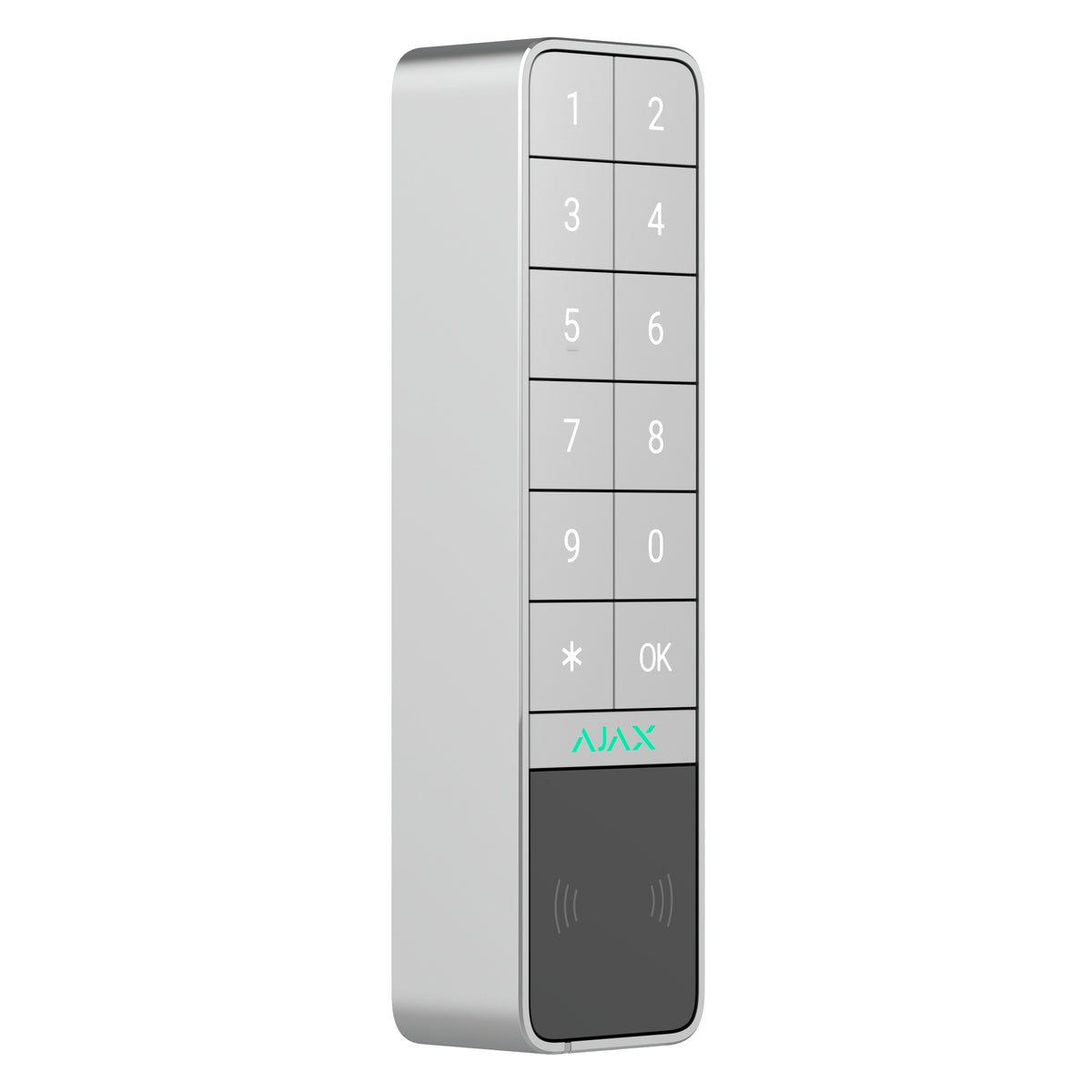

AJAX BASELINE Keypad Outdoor White

• KeyPad Outdoor Jeweller is a wireless keypad designed to manage Ajax systems. Users can authenticate using smartphones, Tag key fobs, Pass cards, and codes. The device is intended for both outdoor and indoor use
• The keypad operates in the Ajax system and exchanges data with the hub using the secure Jeweller radio communication protocol
• KeyPad Outdoor Jeweller features large mechanical buttons, a reader for contactless authorization, a built-in buzzer, and LED indicators. The keypad is used to control security modes and automation devices and to notify of system events via sound and LED indication
• KeyPad Outdoor Jeweller features primary and secondary operating modes. You can set up one keypad function for each mode and switch between modes with a long press of the OK button

Key features

• Two-way communication
• Advanced sabotage protection
• Block encryption featuring a dynamic key
• Instant notifications
• Remote control and configuration in Ajax apps

Frequency bands

• 866.0 – 866.5 MHz
• 868.0 – 868.6 MHz
• 868.7 – 869.2 MHz

Maximum effective radiated power (ERP)

• up to 20 mW
• Automatic power control to reduce power consumption and radio interference.

Radio signal modulation

• GFSK

Radio communication range

• up to 1,700 m / Between the device and a hub (or a range extender) in an open space

Encrypted communication

• All stored and transmitted data are protected by block encryption featuring a dynamic key

Frequency hopping

• To prevent radio interference and jamming.

Keypad functions

• switching security modes
• managing automation devices
• starting entry delays (bypass keypad)

Authentication methods

• access codes
• Tag key fobs
• Pass cards
• smartphone (via Bluetooth)

Access codes

• keypad code
• 1 per each KeyPad Outdoor Jeweller
• user codes
• unregistered user codes
• duress codes

Contactless access

• DESFire® EV1, EV2, EV3
• ISO 14443-А (13.56 MHz)

Contactless authentication via smartphone

• A smartphone with an Ajax app installed and Bluetooth Low Energy (BLE) support can be used for authentication instead of Tag or Pass. BLE is a radio protocol with low power consumption. The keypad supports Android and iOS smartphones with BLE 4.2 and later.

Arming without entering a code

• When enabled, this feature allows users to arm the facility without entering a code or presenting an access device.

Group security management

• Users can change the security mode of groups they have access to directly from the keypad.

Authorization confirmation with a passcode

• This feature activates two-factor authentication. When enabled, users must first present an access device (Pass, Tag, or smartphone) and then enter a passcode to confirm authorization.

Function button

• panic
• mute fire alarm
• none


Automation device control

• Allows users to control automation devices or run scenarios by keypad.

Starting entry delay

• Activates an entry delay, enabling users to disarm the facility using the main keypad.

Indication of malfunctions and security mode

• When enabled, the keypad uses LED indicators to show the current security mode, as well as detector malfunctions or loss of communication with the hub. A built-in buzzer notifies of alarms, opening doors, and entry/exit delays.

Recommendations

• The device is designed for outdoor and indoor use.

Sabotage protection

• Unauthorized access auto-lock
• Tamper alarm
• Holding screw
• Protection against spoofing
• Communication loss detection

Main power supply

• 2 × CR123A
• type C
• up to 3 years

Operating voltage range

• 2.0−3.3 V⎓

Nominal operating voltage

• 3 V⎓

Full battery capacity

• 3,200 mAh

Optional power supply

• External supply operating range / 10.5–14 V⎓, up to 1 A

Enclosure

• Dimensions : 170 × 45 × 31 mm
• Weight : 258 g
• Operating temperature range : from −25 °C to +60 °C
• Operating humidity : up to 80%
• Protection class : IP66 / IK08
