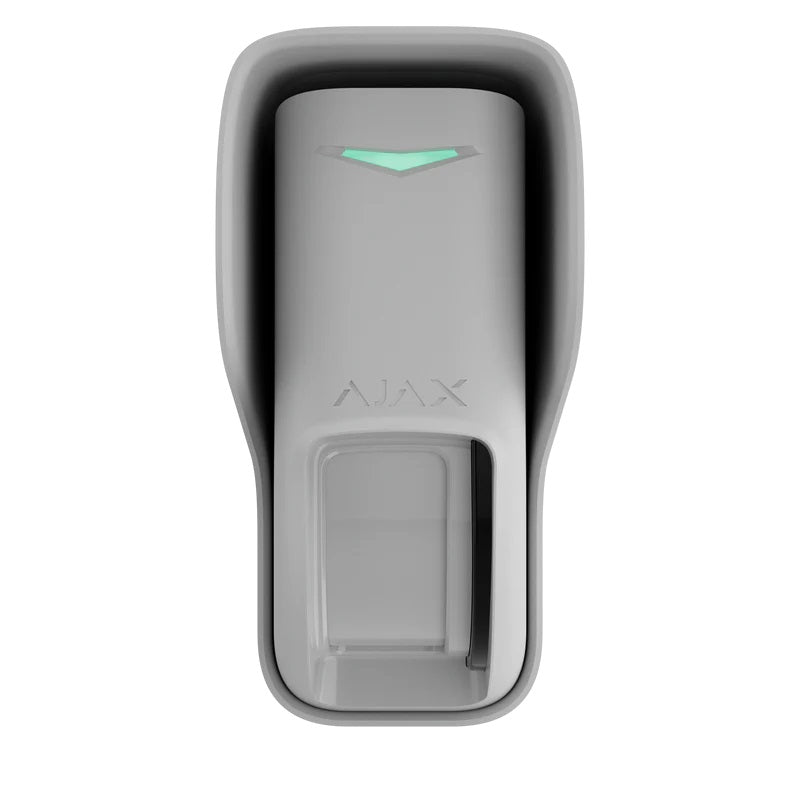

AJAX BASELINE PIR Outdoor Curtain White

The first line of defense
Curtain Outdoor Jeweller is a motion detector for covering the perimeter of a site with exceptional accuracy and a near-zero chance of false alarms. Featuring a unique optical system, the device looks over narrow sectors of up to 12 m long. Dual motion detection technology engaging two PIR sensors and one K-band microwave sensor allows filtering out false alarms caused by thermal noise, animals, or plants. Adjustable detection range and sensitivity, as well as two operating modes, make the device a perfect fit for any site. Pre-installed batteries ensure stable performance for up to three years.

Communication
Jeweller Communication Technology
Proprietary wireless communication technology to transmit commands, alarms, and events.

Key features:
• Two-way communication
• Advanced anti-sabotage
• Block encryption featuring a dynamic key
• Instant notifications
• Remote control and configuration in Ajax apps

Frequency bands:
• 866.0–866.5 MHz
• 868.0–868.6 MHz
• 868.7–869.2 MHz
• 905.0–926.5 MHz
• 915.85–926.5 MHz
• 921.0–922.0 MHz
(Depends on the sales region)

Maximum effective radiated power (ERP): up to 20 mW
Automatic power control reduces power consumption and radio interference.

Radio signal modulation: GFSK

Radio communication range: up to 1,700 m
Between the detector and a hub or range extender in open space

Encrypted communication:
All data is protected with block encryption using a dynamic key.

Frequency hopping:
Prevents radio interference and jamming.

Wings Communication Technology
Proprietary wireless communication technology used for firmware updates.

Key features:
• Two-way communication
• Advanced anti-sabotage
• Block encryption with a dynamic key
• Automatic reloading of data packets on transmission errors

Frequency bands:
• 866.0–866.5 MHz
• 868.0–868.6 MHz
• 868.7–869.2 MHz
• 905.0–926.5 MHz
• 915.85–926.5 MHz
• 921.0–922.0 MHz
(Depends on the sales region)

Radio communication range: up to 1,700 m
Between the detector and a hub or range extender in open space

Encrypted communication:
All data is protected with block encryption using a dynamic key.

Frequency hopping:
Prevents radio interference and jamming.

Detection
Sensitive elements:
• 2 × PIR sensors
• 1 × K-band microwave sensor (24 GHz)
K-band sensor helps reduce false alarms caused by thermal interference.

Motion detection distance: up to 8–12 m
When installed at a height of 1–2.4 m; adjustable via enclosure slider

Motion detection angles:
• Horizontal: 8°
• Vertical: 85° / 75° / 15°
Depends on installation height: 85° or 75° at 2.4 m; 15° at 1 m

Motion detection speed: 0.3 to 2.0 m/s
Detector lens should be perpendicular to the likely intrusion path

Sensitivity: 3 levels
Configurable by a PRO or admin in the Ajax apps

Pet immunity:
• Height: up to 100 cm
• Weight: Irrelevant
Install detector at 1 m height and set slider to Pet position

False alarm prevention:
• Dual motion detection technology
• SmartDetect software algorithm

Temperature compensation:
Ensures reliable motion detection from −25 °C to +60 °C

Recommendations
Installation height:
• 2.4 m for standard mode
• 1 m when Pet immunity is enabled
Suitable for indoor and outdoor use
Use a hood to protect the anti-masking system from weather

Sabotage Protection
• Tamper alarm: Detects attempts to detach or remove the detector
• Device authentication: Protects against spoofing
• Anti-masking system: Detects attempts to block the view
• Accelerometer: Detects movement if installed on third-party brackets
• Holding screw: Secures device on SmartBracket or hood
• Communication loss detection: Within 36 seconds (depends on Jeweller settings)

Power Supply
• Battery: 2 × CR123A (pre-installed)
• Battery type: Type C
• Battery life: Up to 3 years

Voltage:
• Operating range: 4.1–6.2 V⎓
• Nominal: 6 V⎓

Current consumption:
• Quiescent: 37 μA
• Maximum: 600 mA

Battery capacity:
• Full: 1,600 mAh
• Low voltage: 4.48 V⎓
• Recovery voltage: 5.14 V⎓
• End-of-life voltage: 4.1 V⎓
• End-of-life capacity: 170 mAh
Device turns off at end-of-life voltage

Battery manufacturer: Huiderui or Panasonic

Enclosure
Dimensions:
• With hood: 155 × 77 × 85 mm
• With hood and angle mount: 155 × 84 × 98 mm
• Without hood: 141 × 60 × 72 mm
• Without hood and with angle mount: 141 × 76 × 84 mm

Weight:
• With hood: 299 g
• Without hood: 223 g
• Angle mount: 34 g

Environmental resistance:
• Temperature range: −25 °C to +60 °C
• Humidity: up to 95%
• Protection class: IP55
