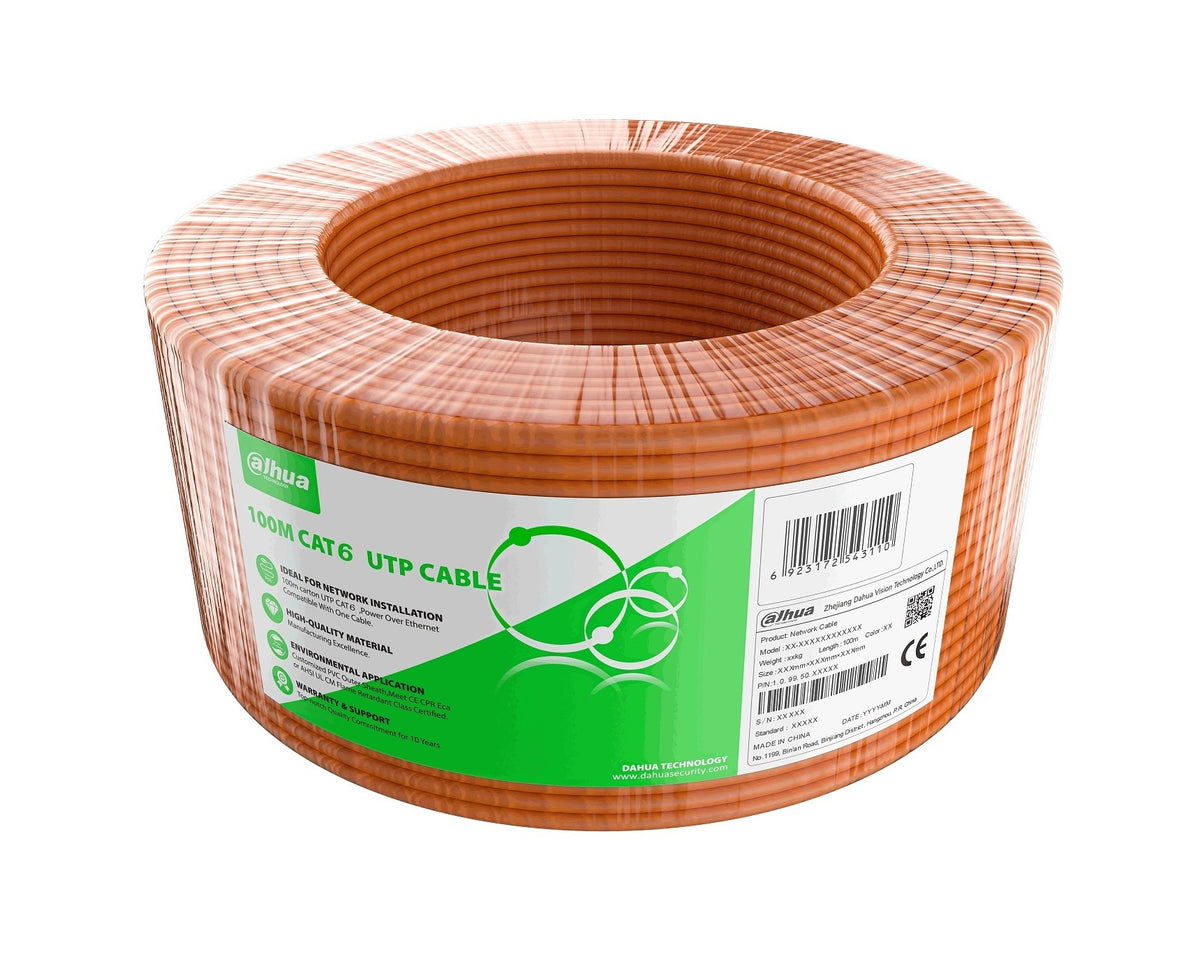

Dahua CAT6 Cable CCA 100m Orange PFM922I-6UN-C-100
Description
Description
Important Note: CCA Cables are not recommended for POE installations
- 100m/carton UTP CAT6, power over Ethernet, compatible with one cable
- Customized PVC outer sheath; CE CPR Eca flame retardant class certified
Conductor
- Material : CCA (Copper content 22%–31%)
- Diameter : 0.57 mm ± 0.01 mm (0.0224"±0.0004")
- Wire Gauge : 23AWG
Insulation
- Material : HDPE
- Min. Average Thickness : 0.21 mm (0.0083")
- Diameter : 1.02 mm ± 0.1 mm (0.0402"±0.004")
- Color : Blue, white/blue; orange, white/orange; green, white/green; brown, white/brown
Separator
- Material : PE
- Specification : Translucent 4.5 mm × 0.4 mm (0.1772"±0.0157")
Rip Cord
- Material : Polyester
- Specification : 500D
Sheath
- Material : PVC
- Min. Average Thickness : 0.5 mm (0.0197")
- Diameter : 6.5 mm ± 0.3 mm (0.2559"±0.0118")
- Color : Orange
Electrical
- Max. DC Resistance of a Single Conductor : 11.5Ω/100 m
- Min. Insulation Resistance : 5000MΩ·km
- Max. DC Resistance Unbalance : 2% (pair intra), 4% (pairs inter)
- Dielectric Strength : No breakdown with 1kV DC for 1 min
Transmission
- Characteristic Impedance : 100Ω ± 15Ω
- Near End Cross Talk : ≥39.30 dB/100 m @250 MHz
- Max. Attenuation : 34.8 dB/100 m @250 MHz
- Return Loss : ≥17.3 dB/100 m @250 MHz
Mechanical
- Tensile Strength : Sheath≥13.5 MPa, insulation≥16 MPa
- Elongation at Break : Sheath≥150%, insulation≥300%
- Installation Bending Radius : >8 times of outer cable diameter
- Conductor Elongation at Break : ≥10%
Environmental
- Shrinkage of Insulation : ≤5%
- Color Migration Resistance of Insulation : No migration
- Sheath Tensile Strength and Elongation at Break after Aging : ≥12.5 MPa, ≥100%
- Low Temperature Bending Test : No cracking after the test
- Heat Shock Test : No cracking after the test
- Operation Temperature : –20°C to +60°C (–4°F to 140°F)
- Installation Temperature : 0°C to +50°C (32°F to 122°F)
- Storage Temperature and Humidity : –10°C to +40°C (14°F to 104°F), <60% (RH)
Security
- Vertical Fire Propagation Test : Comply with IEC 60332-1-2
Packaging
- Length : 100.0 m (328.08 ft) ±1 m (3.28 ft)
- Inner Carton Dimensions : 286 mm × 119 mm × 289 mm (11.26" × 4.69" × 11.38") (L × W × H)
- Net Weight : 3.2 kg ±0.3 kg (7.05 lb ±0.66 lb)
- Gross Weight : 3.5 kg ±0.3 kg (7.72 lb ±0.66 lb)
- Packaging Dimensions : 595 mm × 310 mm × 270 mm (23.43" × 12.20" × 10.62") (L × W × H)
- Packaging Method : 100 m/carton, 4 inner cartons in one package
Compliance
- Executive Standard : Q/DXJ 067-2019
- Certification : CPR Eca
