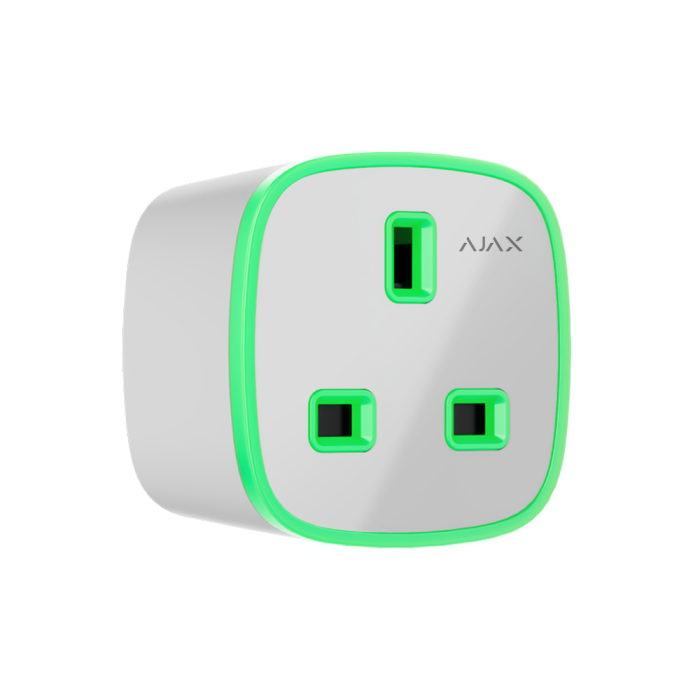

Ajax Smart Plug UK type

Everything is ready by the time you get home

• You will come back home to enjoy comfortable climate and cozy atmosphere all year round. Turn on your heating devices during winter and air conditioner during summer. Start your humidifier and heat water for your bath: do it all with only a few taps in the app on your way home

No more worries about forgetting an iron on

• When you leave your house, close the door and arm the system. All top energy consuming and dangerous appliances will be automatically switched off. Iron, heater, and toaster will no longer create a risk of fire

Identifies power vampires

• Socket informs you about the most power consuming devices. As soon as an appliance starts consuming electricity, Socket's LED changes colour in real time

Complies with electrical safety standards

• Socket complies with the standards for electrical appliances ensuring your safety. Each smart plug is fully tested: quality of materials, effect of high temperatures, ability to work for a long time under load

Protects your curious little ones

• Special shutters inside the Socket protect your children and prevent them from inserting screwdrivers, scissors, or hairpins. They also protect from dust and splashes

Home and office automation

• Use scenarios to make life safer and more comfortable. Set your office lights to turn off automatically on arming, program your projectors to turn on when outdoor motion detectors identify intruders, or turn on your toaster at a certain time in the morning

Simple connection

• Socket can be connected and set up in a matter of minutes. To add a Socket to the system, scan a QR code with the Ajax app, name it and assign a room. The device and automation scenarios are also configured in the app in real time

• Classification : Smart socket
• Device type : Remote-controlled
• Installation method : In outlet
• Compatibility with hubs : All hubs
• Compatibility with range extenders : All radio signal range extenders
• Actuating element : Electromagnetic relay
• Service life : At least 200,000 switches
• Power supply voltage range : 230 V~, 50 Hz
• Output power (resistive load at 230 V) : up to 3 kW
• Device energy consumption : ≤ 1.5 W
• Maximum current protection : Yes, selectable 1–16 A / For regular loads, we recommend using current values up to 13 A. Values between 13 and 16 A can only be used for short-term loads
• Maximum temperature protection : Yes, +95°С / The socket turns off automatically if the temperature is exceed
• Overvoltage protection : Yes,min — 184 V~max — 253 V~
• Electric shock protection class : Class I (with grounding terminal)
• Energy consumption parameter check : Yes (current, voltage, power consumption, consumed energy)
• Load indicator : Yes
• Load current : 13 A
• Load indicator : Yes / The option of adjusting the brightness of the LED frame of the device (15 brightness values)
• Operation modes : Impulse / Bistable
• Contact state : Normally open / Normally closed
• LED indication : Adjustable (LED frame, 7 colours)
• Adjustable pulse duration : 1–255 sec
• Jeweller radio technology : Communication range with the central unit — up to 1,100 m in an open space / Two-way communication between devices
• Operating frequencies : 866.0 – 866.5 MHz / 868.0 – 868.6 MHz / 868.7 – 869.2 MHz / 905.0 – 926.5 MHz / 915.85 – 926.5 MHz / 921.0 – 922.0 MHz / (depends on the region of sale)
• Self-adjusting RF output power — up to 25 mW
• Block encryption with floating key
• Device authentication
• Verification of each communication session
• Detector scanning period from 12 to 300 sec
• Anti-sabotage : Protection against forgery / Jamming detection
• Remote setting and testing : +
• Operating temperature range : From 0°С to +40°С
• Operating humidity : Up to 75%
• Ingress protection : IP20
• Overall dimensions : 54.5 × 54.5 × 59 mm (with plug)
• Weight : 90 g
